How to Set up your Neat Bar/Bar Pro for BYOD Mode

Last updated on August 21, 2024

While Neat devices deliver great experiences with Zoom Room and Microsoft Teams Room applications, we recognize that you may need to join meetings on other platforms. For these situations, BYOD Mode allows you to use Neat devices with any video service, while still benefiting from Neat’s advanced hardware and features.

This guide provides step-by-step instructions for enabling BYOD Mode on your Neat Bar or Neat Bar Pro. For instructions on other devices, see:

Warning: When running a Neat device in BYOD mode, the videoconferencing application installed during out-of-box setup (Zoom or Teams) is terminated. Because the application cannot communicate with its cloud, you may see the devices appear offline in your Zoom or Teams cloud admin portal. Connectivity to Neat Pulse is maintained during BYOD Mode.

For customers who do not wish to run native applications such as Zoom or Teams, Neat devices offer the ability to run our BYOD application without downloading Zoom/Teams during our OOB process. BYOD-Only Mode (beta)

1. Requirements

  • Personal Computer that supports HDMI-Out direct or through dongles
  • USB-C to USB-C or USB-A to USB-C cable (3.0 or higher)*
  • HDMI Cable (existing content-share HDMI cable can be used for BYOD Mode)
    • Note: USB-C to HDMI adapters are supported.

*Note: Currently, BYOD Mode supports only High-Speed (USB 2.0) data transfer rates due to temporary software limitations. Super Speed (USB 3.0) cabling is recommended for future updates supporting Super Speed connectivity.

2. Instructions

2.1 Accessing USB Connectivity and BYOD Mode using your Neat Pad

  1. Navigate to Neat’s System Settings.
    • For Zoom: Settings -> General -> System settings
    • For Microsoft Teams: More -> Settings -> Device settings
  2. Then, navigate to Neat System Settings -> System -> USB Connectivity, where you can select:
    • Manual BYOD mode (beta) or
    • Auto BYOD mode or
    • Peripheral devices (default configuration, i.e., BYOD mode disabled)

2.2 Selecting between different BYOD Mode

Figure 1: USB Connectivity page showcasing different BYOD mode options

2.2.1 Manual BYOD mode

Manual BYOD Mode allows BYOD mode to be manually enabled or disabled directly from the Neat Pad using the Neat slide-out menu (swipe from right to left). When Manual BYOD Mode is selected, the BYOD mode button will appear in the slide-out menu.

This mode is particularly useful in scenarios where a laptop remains connected to the Bar/Bar Pro via USB, allowing BYOD mode to be toggled on and off as needed using the slide-out menu.

Figure 2:

2.2.2 Automatic BYOD mode

In Automatic BYOD Mode, USB passthrough functionality is fully automated. Once the Neat devices are wired as described in Section 2.2 (“Setting Up Cables for BYOD Mode”), they will automatically function as USB-connected peripherals for a computer.

2.2.3 Peripheral devices

This mode indicates that BYOD mode is disabled but allows the USB connection to be used for peripherals such as a mouse or keyboard.

2.2.3.1 Audio over USB (Neat Bar Pro only)

On the Neat Bar Pro you will see the option to enable Audio over USB when Peripheral devices are selected. For more information on this feature please refer to Neat Bar Pro Audio over USB.

2.2.4 USB extenders

This setting is designed for customer setups that use specific types of USB extenders for BYOD (Auto/Manual mode). Most USB extenders rely on a V-BUS line connection, which typically carries a 5V supply, to trigger the electrical components within a USB device. However, a small subset of extenders do not switch this power on or off based on the presence of a laptop. Instead, they send suspend commands when the laptop is disconnected or when the USB extender enters power-saving mode.

When the USB extender option is enabled, Neat devices will listen to the suspend command from the USB extender. When the toggle is off, the Neat device will instead rely on the V-BUS line connection to enable or disable BYOD mode.

2.3 Cable set up

  • First, connect one end of the required USB cable to the USB-C port on the back of the Bar and the other end to your computer.
  • Next, connect one end of the HDMI cable to the HDMI-in port for screen sharing on the back of the bar and the other end to your computer.
Figure 1. Neat Bar Port Schematics (Simplified)

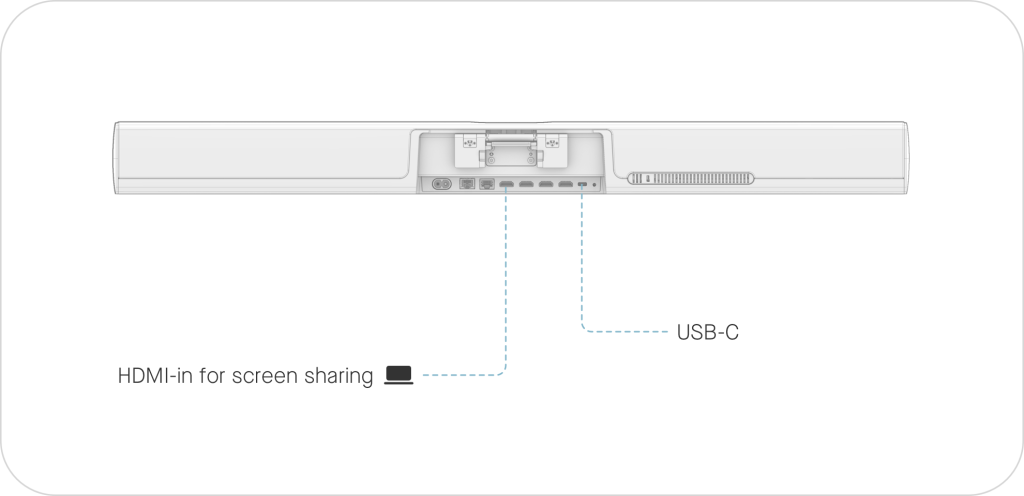

Figure 2. Neat Bar Pro Port Schematics (Simplified)
  • After you connect a USB-C cable, you will see a diagram explaining the ability to mirror or extend your computer’s display by connecting the HDMI cable from your computer to the HDMI-in port on the Bar (Figure 3). Once a computer is connected to the Bar’s HDMI-in port (Figure 2), your screen will appear on the display(s) connected to HDMI 1/ HDMI 2.

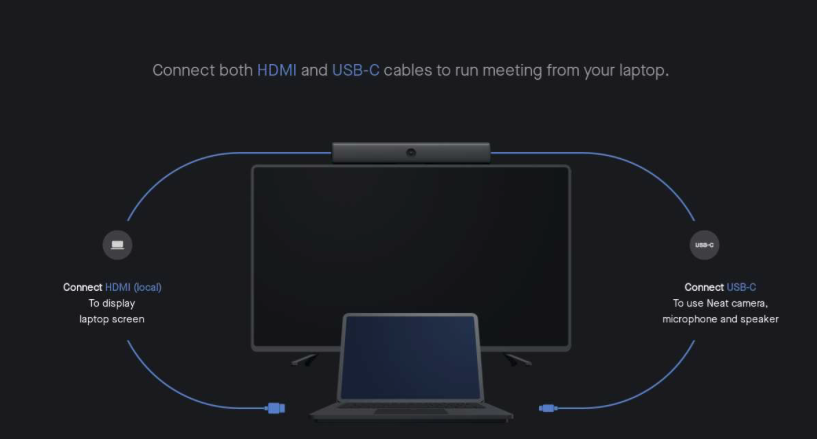

Figure 3. Neat Bar’s HDMI 1 Output Image during BYOD Mode (Computer Not Wired to HDMI-in)

2.4. Set Neat Device as your default Video and Audio Devices

  1. Open your preferred video conferencing application on your computer.
  2. Set the default devices for the camera, microphone, and/or speakers to the Neat Device (named ‘Neat Bar…’ or ‘Neat Bar Pro…’).
    • You can enable only the hardware you need. For example, use the Neat device’s camera and microphone while using your computer’s built-in speakers etc.

Note: If you are having issues with adjusting the volume on Mac devices, please review this article by Apple on adjusting sound output settings.

Platform Setup Articles:

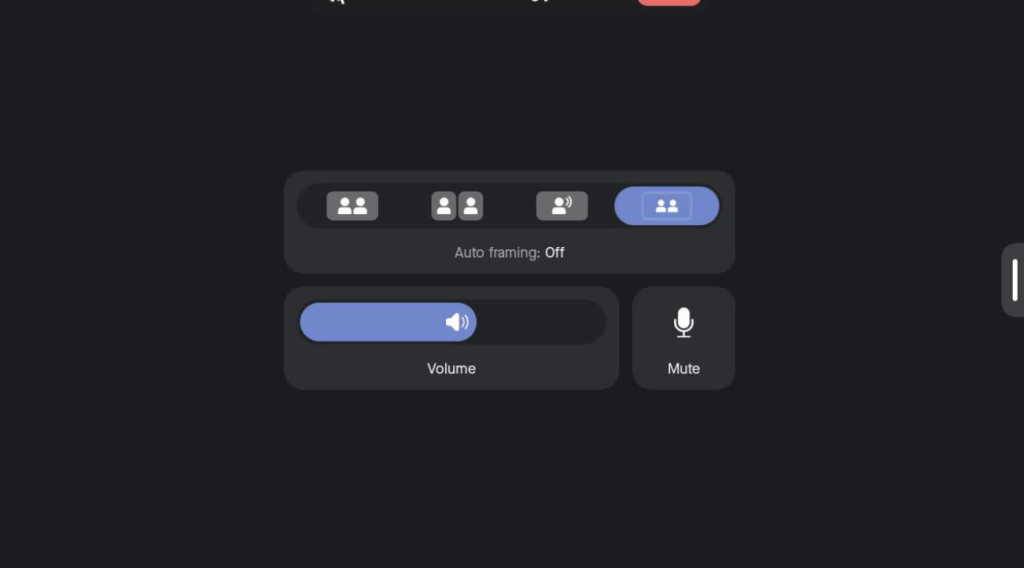

Figure 5. Neat Pad display during BYOD Mode

Note: You will need to use the Pad originally paired with your Bar/Bar Pro. Other connected Pads and 3rd party controllers will appear as disconnected from your room.

Enjoy the Neat experience on any platform!

With this, you should now be fully set to use your Neat Bar, Neat Bar Pro, or Neat Bar Gen 2 with any video conferencing application!
